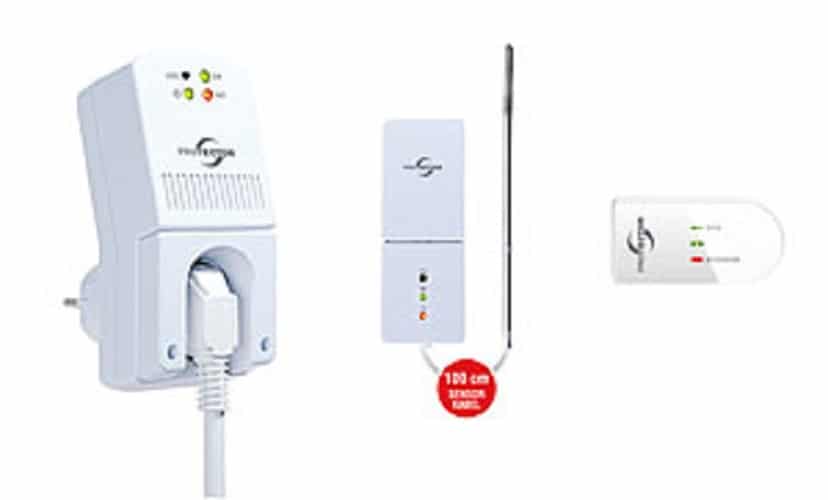

The picture shows a set of accessories for wood-burning stoves. On the left is a socket adapter with LED indicators. In the center is a narrow receiver or transmitter with a longer cable, about 100 cm long. On the right is a small, flat device with a switch. These accessories support the safe and efficient use of a wood-burning stove. Ideal for wood-burning stove owners who rely on modern technology.
Click to enlarge

AS-5030.3

€179,00

Includes 19% Mehrwertsteuer
plus shipping
Delivery Time: Warehouse

The AS 5030.3 radio thermal exhaust air control has two radio transmitters: 1x radio thermal sensor for the stove pipe and 1 x radio mini transmitter for the window, it controls the extractor hood depending on the stove temperature and window opening

Add to wishlist
.

PRODUCT DESCRIPTION

Manufacturer product code: AS-5030.3

The exhaust air appliance (extractor hood, exhaust air fan, etc.) can be enabled both by the window contact (when the window is opened) and by the wireless thermo sensor (when the fireplace is not in use).

The flue gas temperature is measured in the stove pipe.

As soon as this reaches approx. 38°C, the release signal for the exhaust air appliance (e.g. extractor hood) is interrupted and it switches off.

To restart the exhaust air unit, the window equipped with the window contact switch must be opened.

* Calbell-free radio transmitter with window and thermo sensor

ONLY FOR OVENS UP TO A MAXIMUM OF 4.5 KW (sensor for temperatures of max. 400°C

* Self-diagnosis function with reception control

* Switching capacity up to 1800 watts (8A)

* expandable with transmitters

* Radio range up to 50m

Scope of delivery

  • 1 x receiver with plug-in fuses
  • 1 x Thermo radio transmitter in white with 100 cm sensor cable
  • 1 x radio transmitter window, magnetic contact and distance plate in white, battery (CR2477)
  • 1 x brown replacement housing for radio transmitter window, magnetic contact and spacer plate
  • 1 x mounting material
  • 1 x operating instructions & calculation formula

Dimensions:

Receiver: 60x125x90 mm (WxHxD)

Transmitter (window): 6030×19 mm (WxHxD)

Transmitter (stovepipe): 36x97x14 mm (WxHxD)

Power supply:

Receiver: 230V/50Hz)

Transmitter (window): Battery 1×3 V Lithium CR2477 (included in scope of delivery)

Transmitter (stovepipe): Battery 3x 1.5V alkaline battery AAA (not included)
