Cascade

€3.699,00

Includes 19% Mehrwertsteuer
Delivery Time: approx. 14 working days

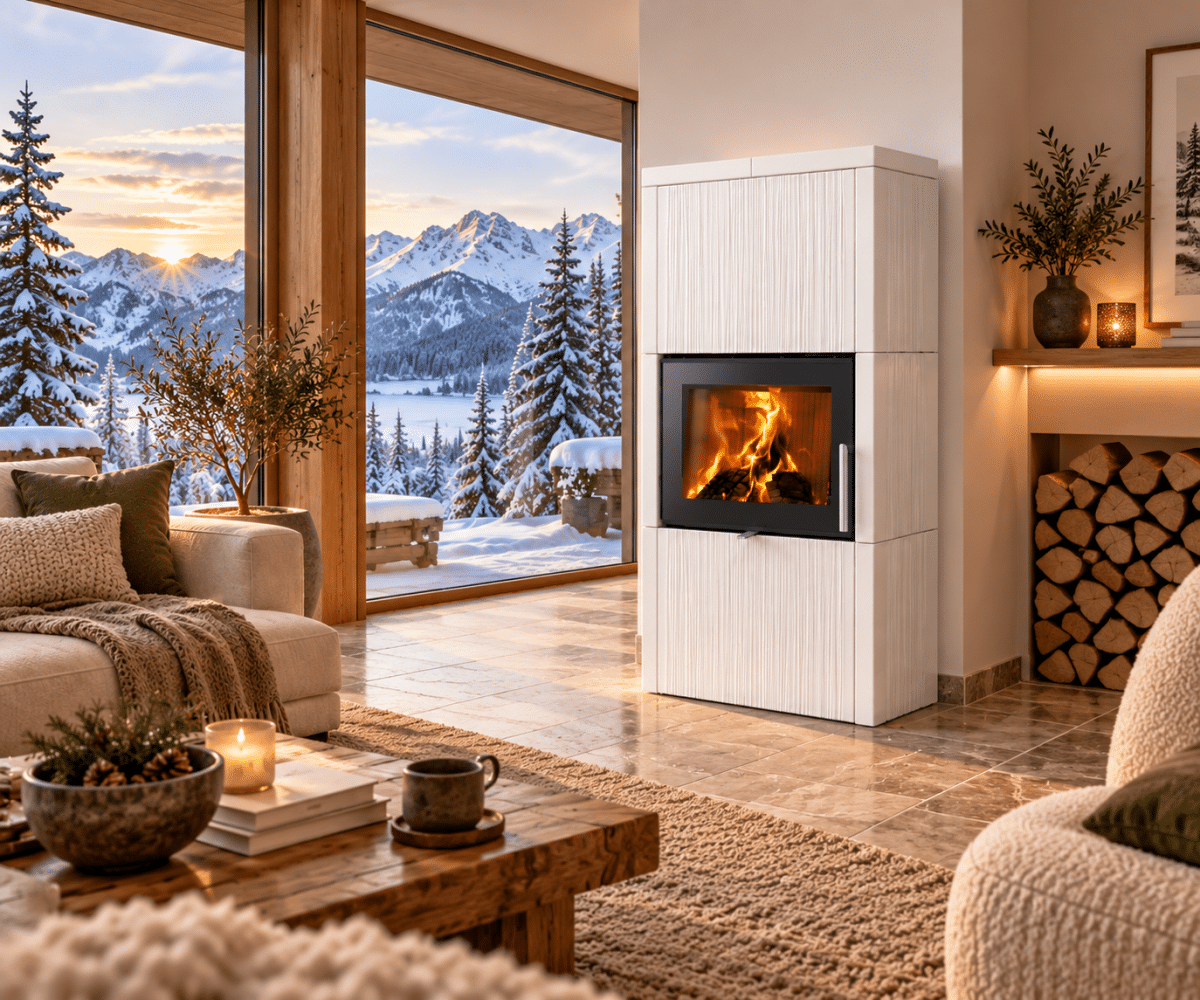

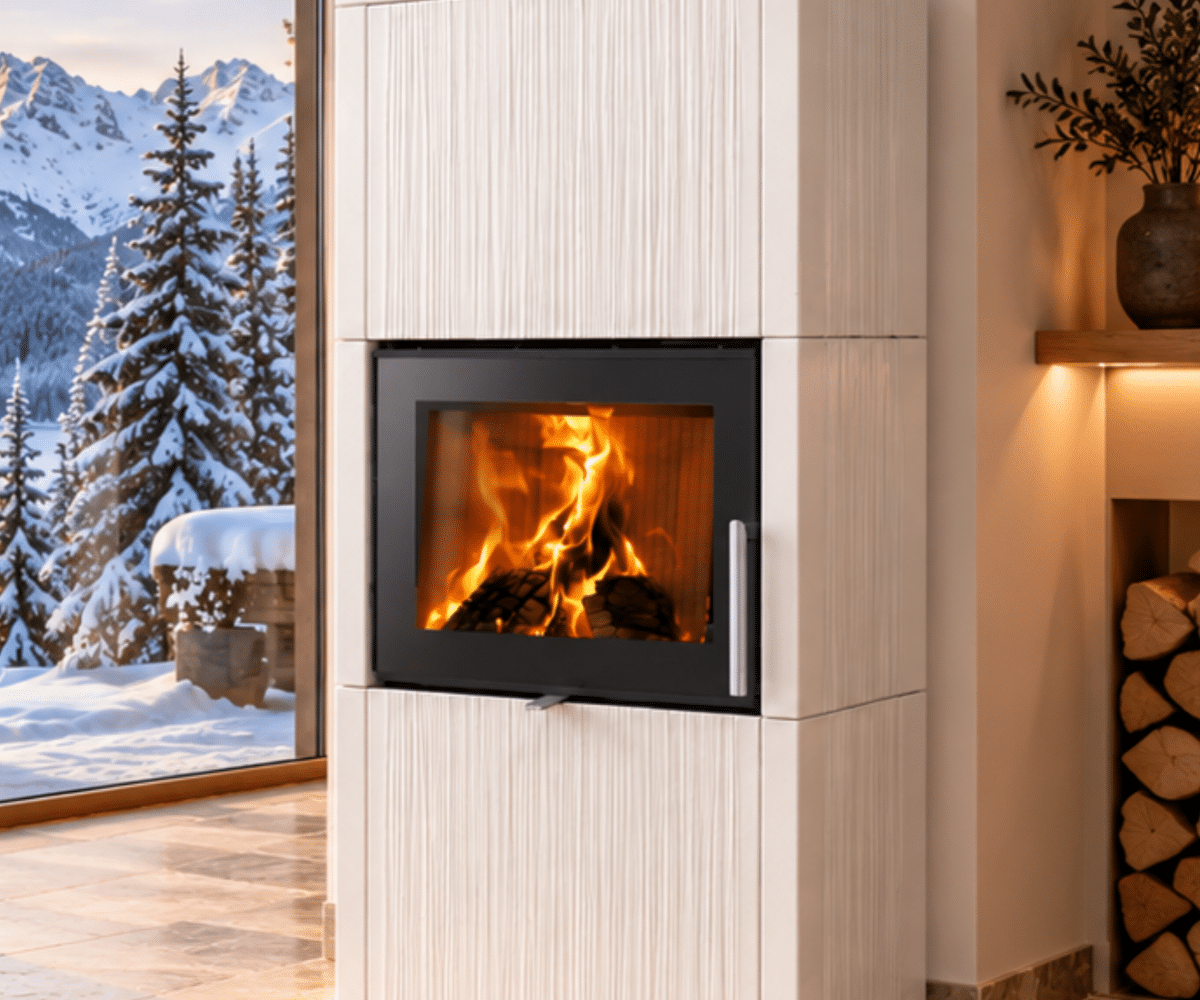

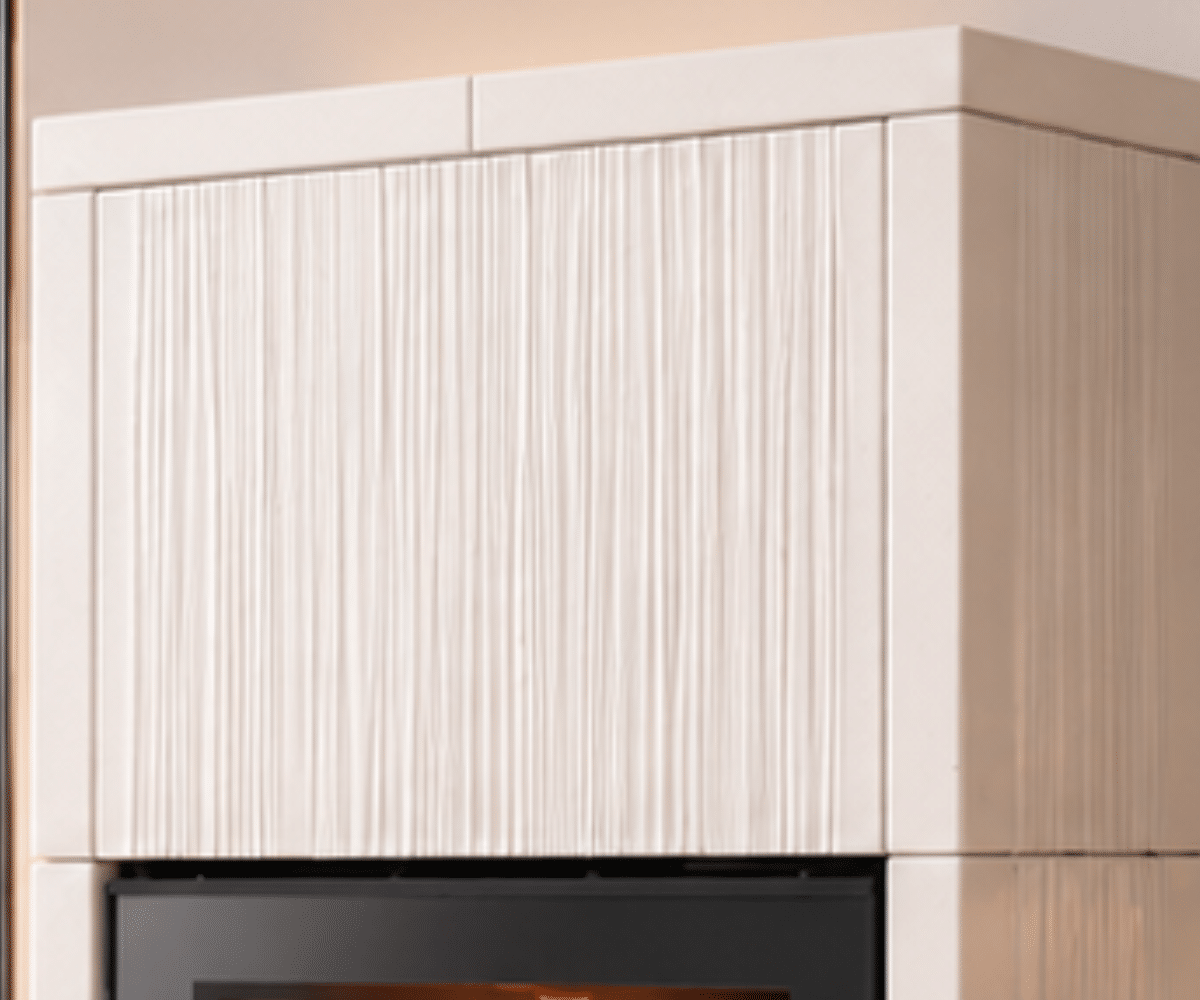

Thanks to its 5.5 kW heating capacity, the Cascade wood-burning stove is also suitable for well-insulated homes or smaller rooms. The solid tile casing ensures a gentler and longer-lasting heat output.
The Cascade's handle is self-cooling.

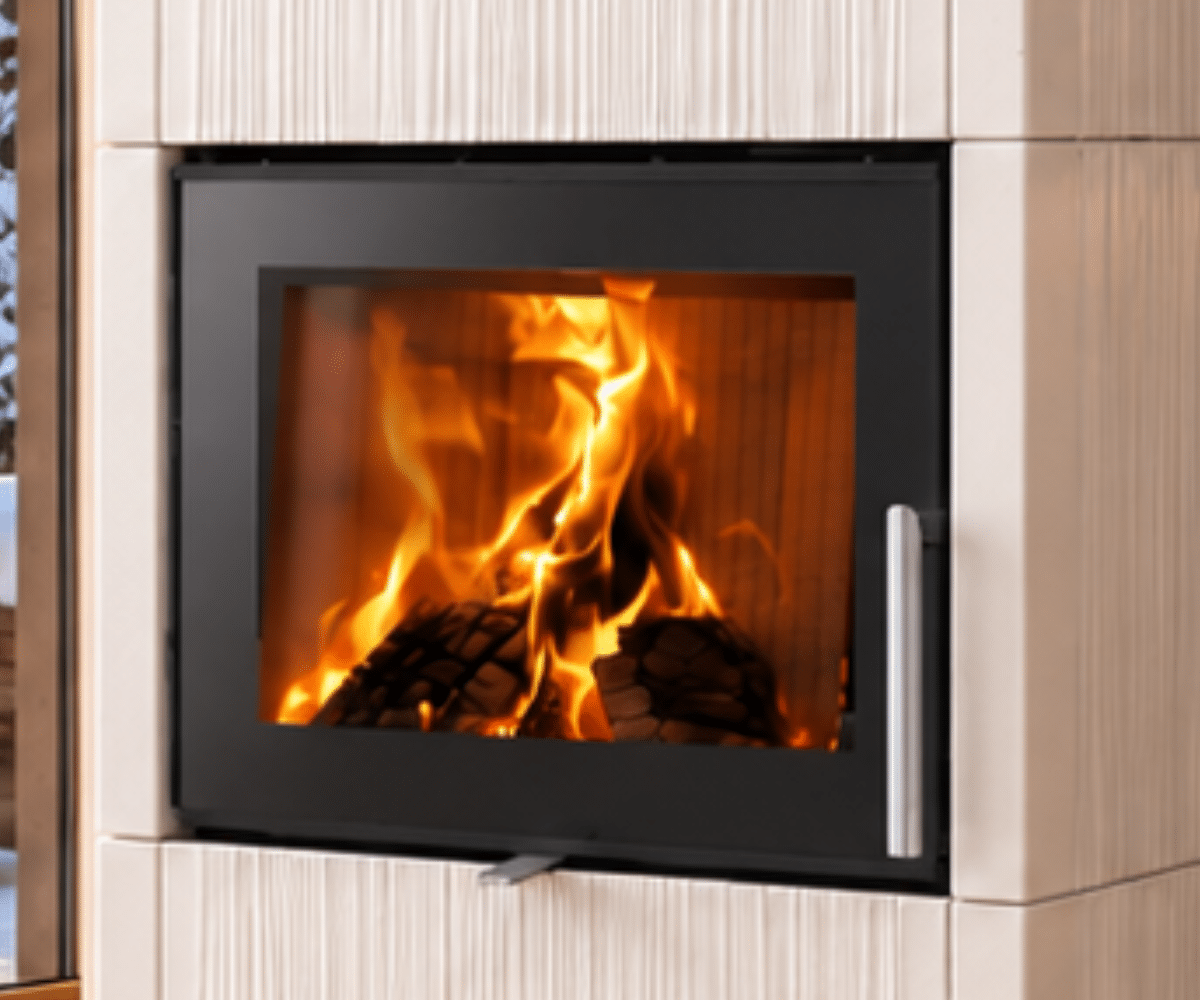

The viewing window remains free of soot for a long time thanks to the window cleaning system.
The smoke detector can be connected either at the top or at the back.
If necessary, an external fresh air supply can be connected.
A
Product data sheet

.

Variants of this model



Technical data


Heat output 5.5 kW
Height / width / depth 137.4 / 65.5 / 40 cm
Pipe socket Ø 150 mm
Design 1
Weight 158 kg
Exhaust gas mass flow 5.3 g/s
Average exhaust gas temperature 300 °C
Minimum delivery pressure for NWL 0.12 mbar
Multiple door locking Yes
Connection top / rear
Fresh air connection Yes
Energy efficiency A
Complies with 2nd stage BImSchV Yes
Windshield cleaning system Yes
Fuels Wood / wood briquette
Log length 33 cm
Manufacturer Art. No. 250022

Product Safety Regulation
Economic operator Name: Feuer & Flamme GmbH
Address: Am Redder 1, 24558 Henstedt Ulzburg, DE
E-mail: info@feuer-flamme.de

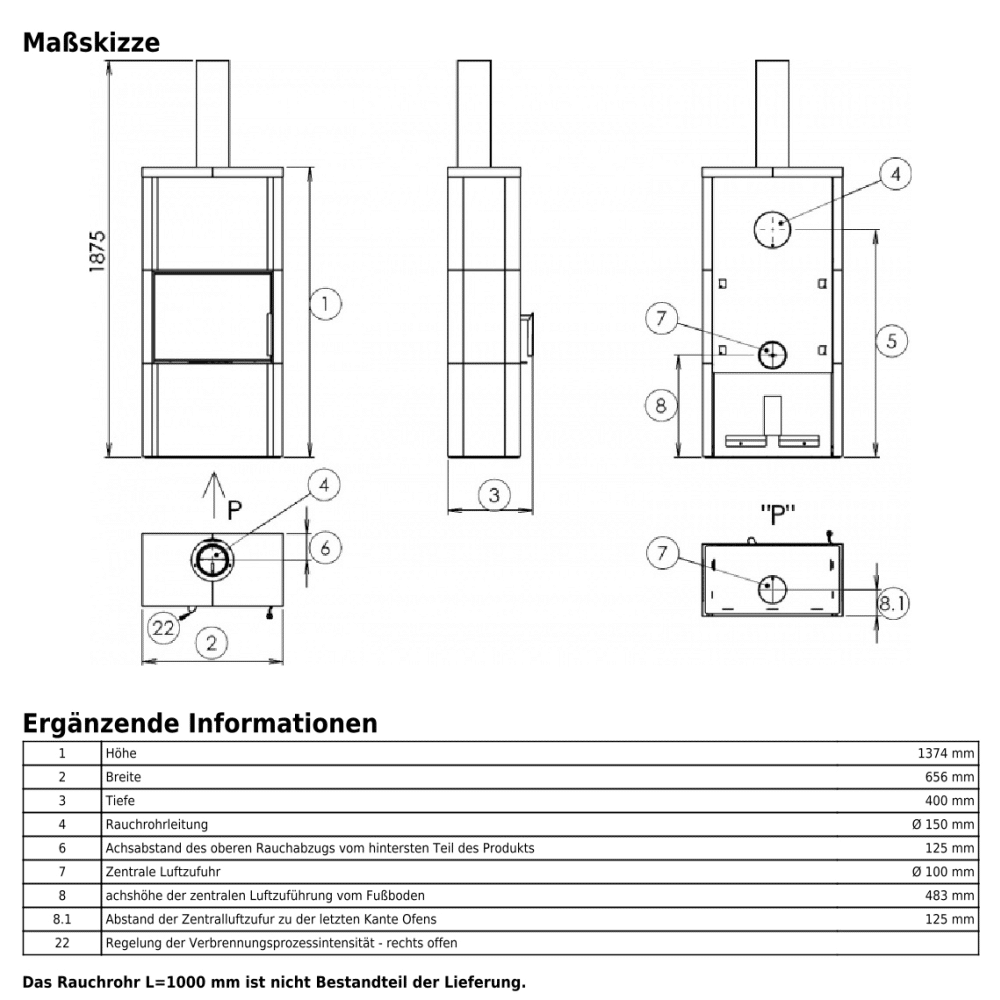

Technical drawing of a wood-burning stove showing front, side, and top views. Dimensions and details, such as the flue and central air intake, are indicated.




Selecting the right stovepipes

Select the right stove pipes for your installation situation here.
If the stove is located in a corner, select a 45° angle in addition to the complete stovepipe system.

Selection of the floor protection panel

If you have a temperature-sensitive floor covering, you will need a floor protection plate.

External supply air connection

If your house is well insulated, you will need both a connection piece for external fresh air supply and the appropriate hose connection.

Window contact switch

If there is an extractor hood in an adjacent kitchen that draws air outwards, you also need a window contact switch. If your extractor hood works on a recirculation basis, this is not required.
