Tao II Aquamarine

3.799,00

Includes 19% Mehrwertsteuer
Delivery Time: Available to order

The Tao wood-burning stove impresses with its solid, high-quality casing made of solid ceramic. The handcrafted stove tiles perfectly frame the flames. Thanks to this solid construction, the Tao not only exudes a powerful presence but also offers long-lasting heat retention. Hot-air pane cleaning, a vermiculite lining, and a continuously adjustable air supply make the fire in the Tao a fascinating experience.
A
Product data sheet

You can find a version of this model in the following exhibitions:BerlinHenstedt-UlzburgLüneburg
.

Variants of this model



Technical data


Heat output 6 kW
Height / width / depth 146.1/ 57.2/ 57.2 cm
Pipe socket Ø 150 mm
Design 1
Weight 174 kg
Exhaust gas mass flow 6.5 g/s
Average exhaust gas temperature 274 °C
Minimum delivery pressure for NWL 0.12 mbar
Multiple door locking Yes
Connection top / rear
Fresh air connection Yes
Energy efficiency A
Complies with 2nd stage BImSchV Yes
Windshield cleaning system Yes
Fuels Wood / wood briquette
Log length 33 cm
Manufacturer Art. No. 130073

Product Safety Regulation
Economic operator Name: Feuer & Flamme GmbH
Address: Am Redder 1, 24558 Henstedt Ulzburg, DE
E-mail: info@feuer-flamme.de

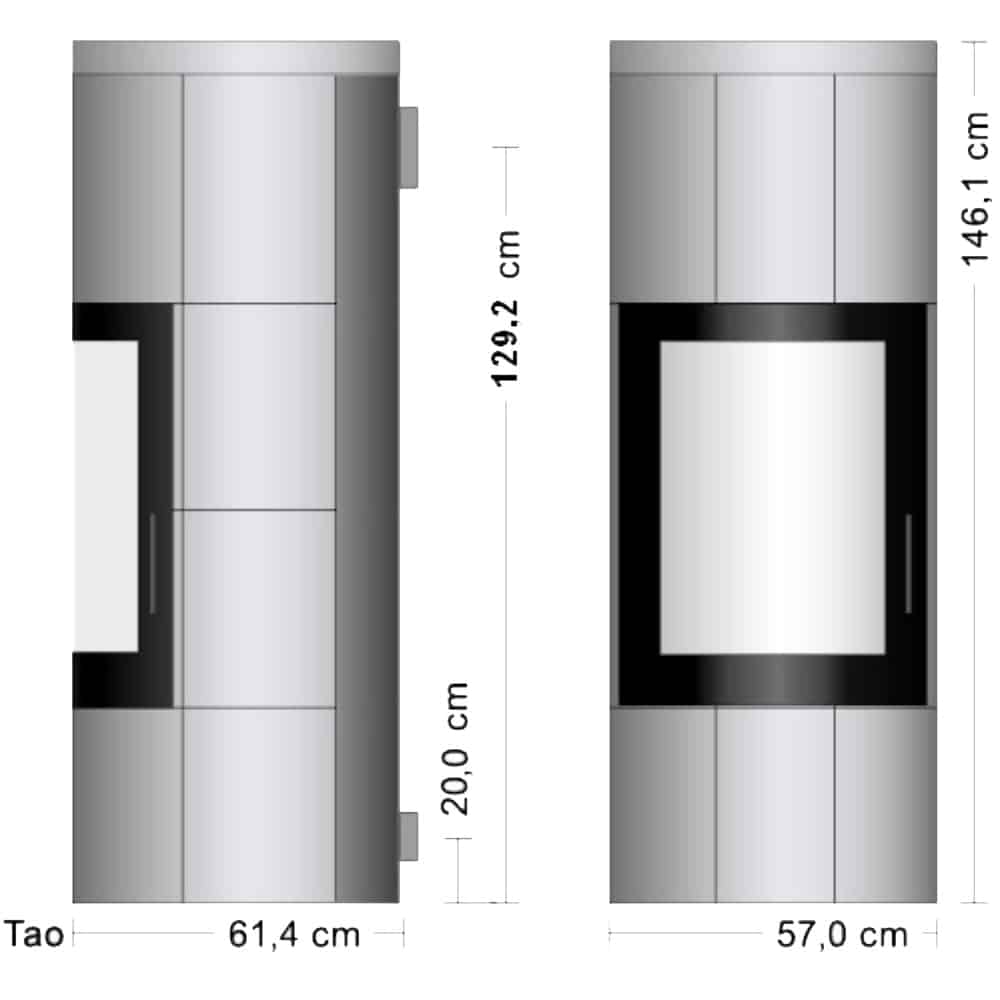

Technical drawing of the Tao wood-burning stove, showing the side and front views with dimensions. Cylindrical shape, large viewing window.




Selecting the right stovepipes

Select the right stove pipes for your installation situation here.
If the stove is located in a corner, select a 45° angle in addition to the complete stovepipe system.

Selection of the floor protection panel

If you have a temperature-sensitive floor covering, you will need a floor protection plate.

External supply air connection

If your house is well insulated, you will need both a connection piece for external fresh air supply and the appropriate hose connection.

Window contact switch

If there is an extractor hood in an adjacent kitchen that draws air outwards, you also need a window contact switch. If your extractor hood works on a recirculation basis, this is not required.
